Schüco 279473 anti-panic multi-point lock Interlock E 39/92/9
Item number: 279473
Schüco 279473 anti-panic multi-point lock Interlock E 39/92/9 is backordered and will ship as soon as it is back in stock.
This genuine Schüco InterLock lock is a self-locking multipoint panic lock featuring three bolts and panic function E. It is designed for the active leaf of double, outward-opening aluminium doors using the Schüco ADS HD system. The difference compared to the InterLock E 279471 is the secure hold-open function: the bolts can be locked in the retracted position. The same lock is used for both DIN left and DIN right applications, so the opening direction does not need to be taken into account.
Full panic function on a double door. In combination with the panic espagnolette bolt 241819 on the inactive leaf, both leaves open using the lever handle or panic bar.
What does the E stand for? From the inside, the door always opens using the door handle or panic bar. On the outside, there is a fixed knob or handle, and the door can only be opened with the key.
| Technical data | |
|---|---|
| System | Schüco ADS HD |
| Application | active leaf of a double door, outward-opening |
| Panic function | E, with secure locking function |
| Burglary resistance | RC 2 |

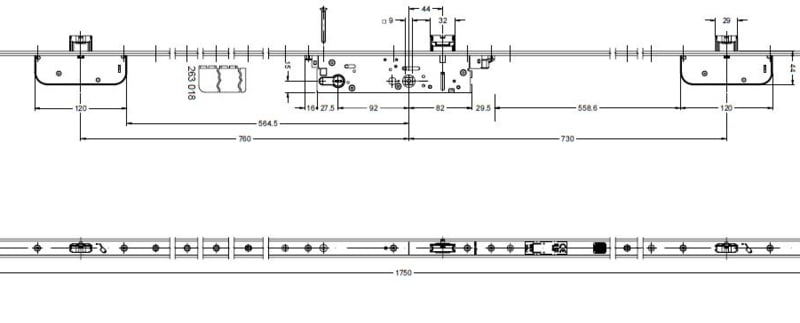

| Backset / PZ / spindle | 39 / 92 / 9 mm |
| Stool height | 1050 mm above finished floor level |
| Schüco product name | 6-B1917 (formerly S.Secury 1917) |
Available to order separately:
- the panic espagnolette lock 241819 with the rod 238397 for the secondary leaf
- strike plates
- a profile cylinder with rose
- a door handle with EN 179 marking, or a panic bar
- end caps 239735
- fastening materials
Want to make it electric? You can make this lock electric using the 263018 motor.
Not sure whether you need the 279471 or the 279473? Send a photo of the faceplate and the side of the main lock—along with the part number, if visible—to info@onlineschucoshop.nl. We’d be happy to take a look!
SB code: S.Secury 6-B1917. This code is almost always found on the lock's faceplate. Multiple locks share the same SB code, so use it to narrow down your search, then verify the backset, the PZ dimension (centre-to-centre distance), and the spindle size. For a multi-point lock also check the distance to the auxiliary lock cases.
Returns policy
Returns policy
You have a 14-day cooling-off period. Register your return via info@onlineschucoshop.nl and send the product, well packaged and together with your delivery note, within 14 days to: Irenestraat 12, 6191 AV Beek.
You may try out the product, but not use it beyond what is needed to assess it. After receipt, we check the item and refund the amount within 14 days.
Questions? Email info@onlineschucoshop.nl.
Shipping information
Shipping information
Shipping to the Netherlands costs €6.99 and to Belgium €9.99 (incl. VAT). For all other countries, please see our shipping page.
We ship daily via GLS, PostNL or UPS. Not in stock? With our express service we always deliver within 3 working days. Contact us at info@onlineschucoshop.nl.
Collection is also possible at our location in Beek (South Limburg), by appointment only.
About Schüco
About Schüco
Schüco is a leading German brand with decades of experience in high-quality window, door and façade systems made of aluminium, PVC and steel. The systems are used worldwide in both new-build and renovation projects and are known for their slim profiles, excellent thermal insulation and burglar-resistant properties up to resistance class RC3.
The aluminium systems are Cradle to Cradle certified. This means the materials are demonstrably free from harmful substances and are produced using renewable energy. PVC systems carry the VinylPlus® certificate, a quality mark for sustainable plastic solutions.
As an official Schüco partner, we supply these systems and help you make the best choice for your project.
Schüco 279473 anti-panic multi-point lock Interlock E 39/92/9 is backordered and will ship as soon as it is back in stock.
Technical specifications
| Auxiliary lock type | 1 shot per side table |
|---|---|
| Faceplate type | U-shape |
| Backset | 39 |
| Handle spindle | 9 |
| Fixing holes | Symmetrical |
| Anti-panic function | E |
