AvanTec - tilt and turn window
Schuco AvanTec fittings were used from approximately 2009 to approximately 2016. These fittings were only used with aluminum frames.
System overview:
In the table, the first column shows a number, which refers to the number in the drawing to clearly indicate which part is meant.
LS = Left-hinged (viewed from the side you open the element towards you.)
RS = Right-hinged (viewed from the side you open the element towards you.)
| NR | What | LS | RS |
|---|---|---|---|
| 3.1 | Scissor stay 300 mm 60 kg - tilt-and-turn | 275011 | 275012 |
| 3.2 | Scissor stay 400 mm 130 kg - tilt-and-turn | 275013 | 275014 |

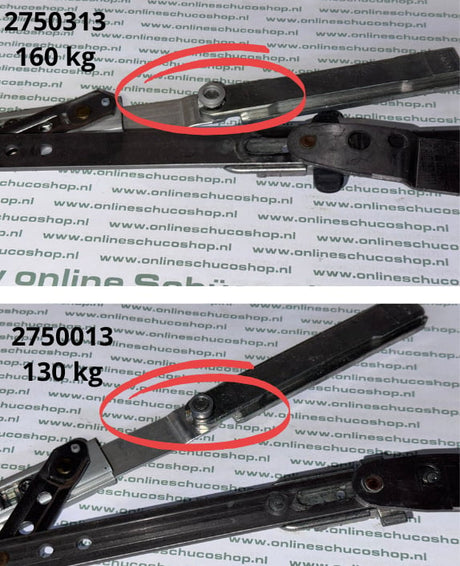

| 3.14 | Scissor stay 400 mm 160 kg - tilt-and-turn | 275313 | 275314 |
| 1.2 | Bottom corner -130 kg | 275007 | 275008 |
| 1.6 | Bottom corner - 160 kg | 275173 | 275174 |
| 6.1 | Internal mechanism 23 mm | 243033 | 243034 |
| 6.2 | Internal mechanism 43 mm | 243037 | 243038 |
| 5.1 | Corner connector with locking function | 243027 | 243027 |
| 7.1 | Run-on block - tilt-and-turn | 243043 | 243044 |
| 9.1 | Control piece with locking function | 243049 | 243050 |
| 10 | Support bracket | 218051 | 218051 |
| 11.1 | Finger lever - tilt-and-turn | 243023 | 243024 |
| 5.15 | Vertical corner connector | 243028 | 243028 |
| 0.12 | WK 2 component | 243953 | 243953 |
| 0.16 | Additional WK 2 lock | 243066 | 243066 |
| 6.9 | Anti-drill protection | 233921 | 233921 |
| 8.1 | Locking roller | 243047 | 243047 |
| 9.2 | Control piece - adjustable | 275099 | 275099 |
| 80.1 | Aluminum control rod WK4 | 184346 | 184346 |
| Plastic control rod - WK0 | 244870 | 244870 | |
| 32.2 | Lockable window handle - various colors - 23 mm | 247033 | 247033 |
| Alternative: Lockable window handle - SmartActive - self-cleaning / antibacterial | 269233 | 269233 | |
| Alternative - non-lockable window handle (no WK2!) - various colors | 247001 | 247001 | |
| Alternative - non-lockable window handle - SmartActive - self-cleaning / antibacterial | 269201 | 269201 | |
| Alternative - old model - lockable window handle - various colors | 234014 | 234014 | |
| Alternative - old model - non-lockable window handle (no WK2!) - various colors | 234004 | 234004 | |

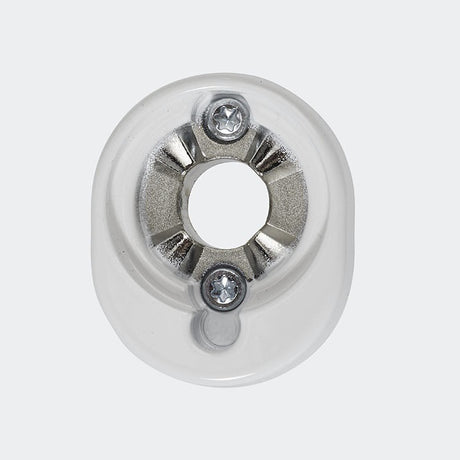

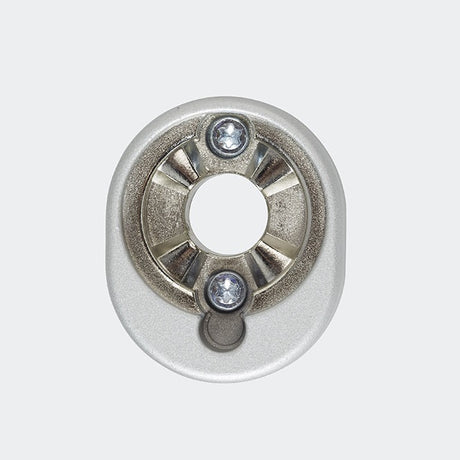

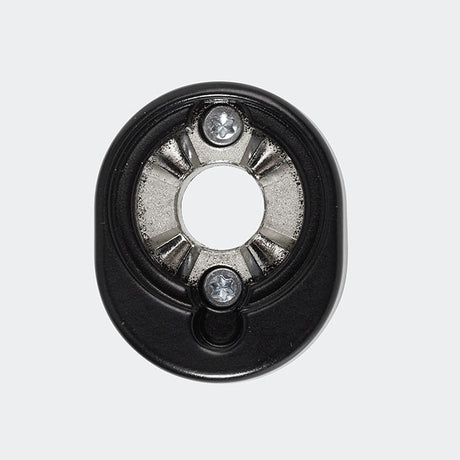

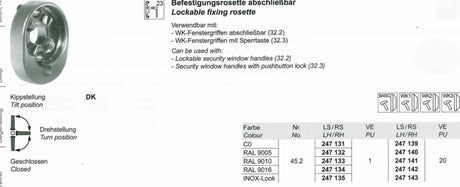

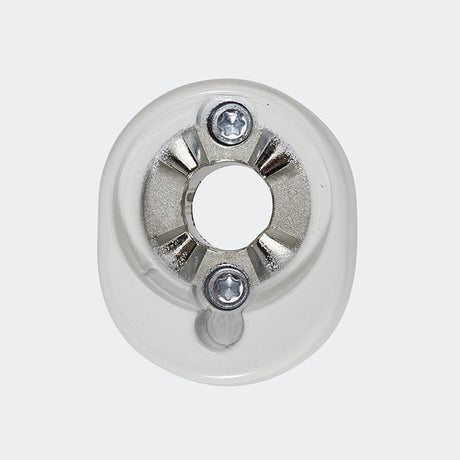

| 45.2 | Rose for lockable handle - various colors - 23 mm | 247131 | 247131 |
| Alternative - rose for non-lockable window handle | 247083 | 247083 | |
| Alternative - rose for lockable window handle SmartActive - self-cleaning / antibacterial | 269131 | 269131 |
Regular price €32,89Unit priceIn stock (205 units)

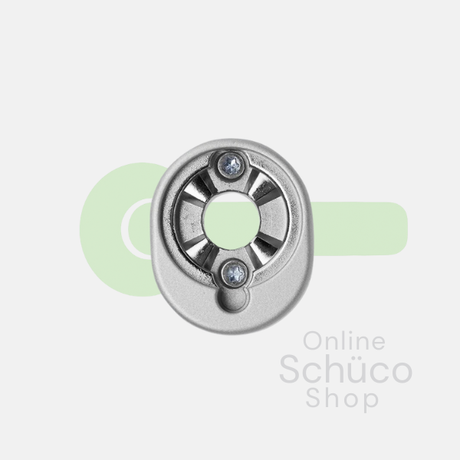

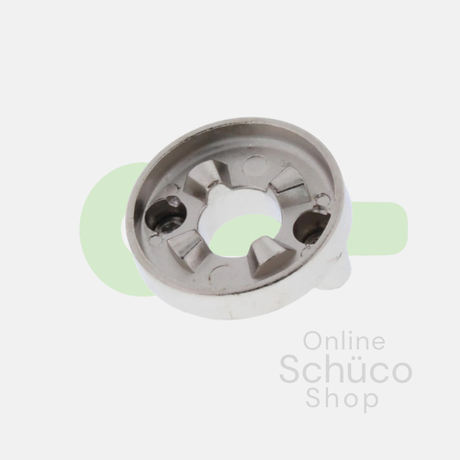

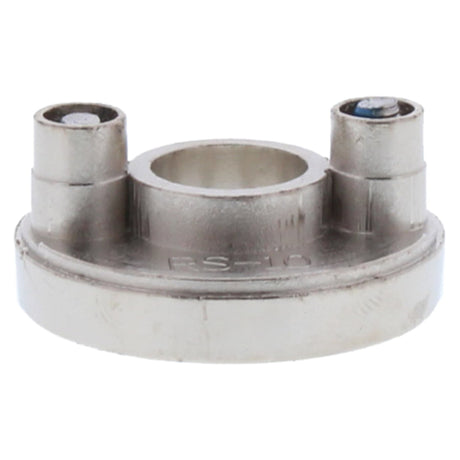

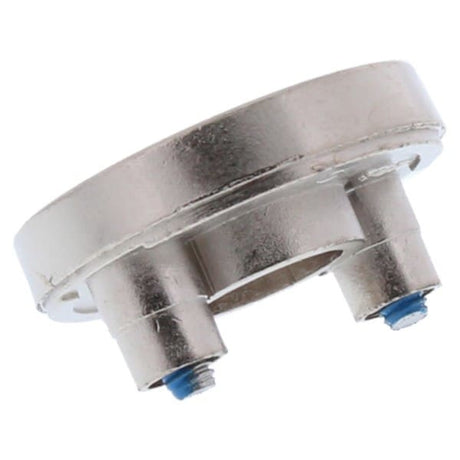

Schuco rosette - non-locking handle - 247091 / 247083
Regular price €7,93Unit priceIn stock (31 units)

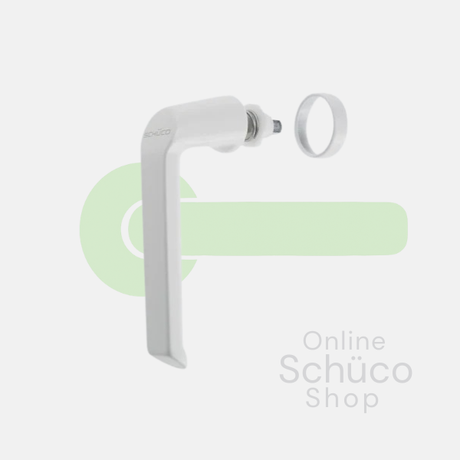

Schuco window handle - traffic white 9016 - 234007
Regular price €36,33Unit priceIn stock (8 units)
Schuco Royal AWS - finger-operated tilt-and-turn LS 243023 / RS 243024
Regular price €9,41Unit priceIn stock (32 units)

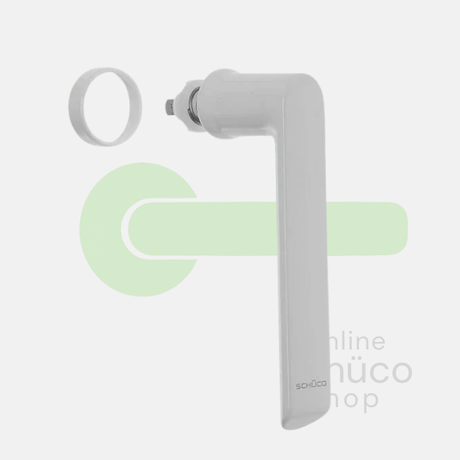

Schuco window handle - traffic white RAL 9016 - 247004
Regular price €14,00Unit priceIn stock (14 units)

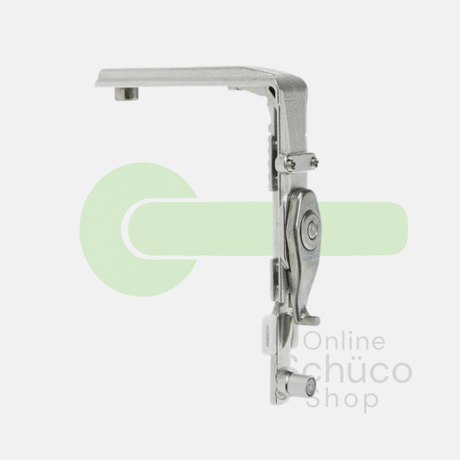

Schuco AWS AvanTec - corner drive with mis-rotation lock 243027
Regular price €63,60Unit priceIn stock (10 units)
7% offSchuco window handle - lockable - cream white RAL 9010 - 247035
Sale price €53,63 Regular price €57,40Unit priceIn stock (10 units)

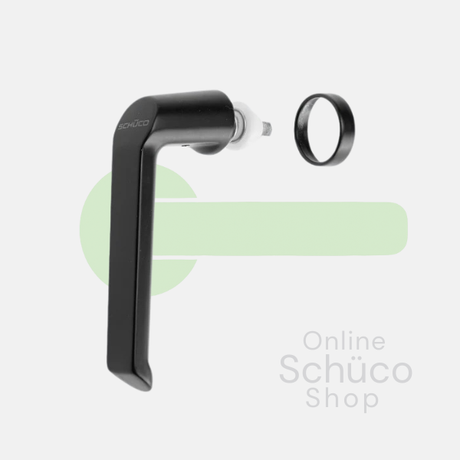

6% offSchuco window handle - black RAL 9005 - 247002
Sale price €14,00 Regular price €14,88Unit priceIn stock (21 units)

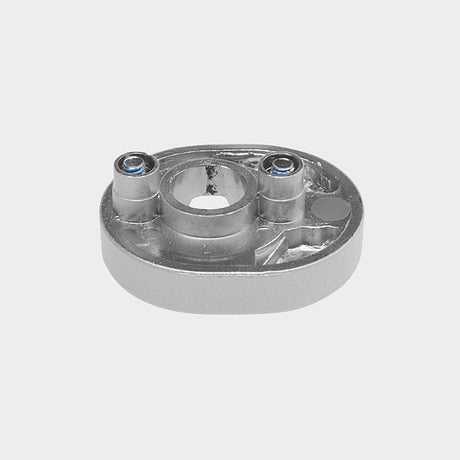

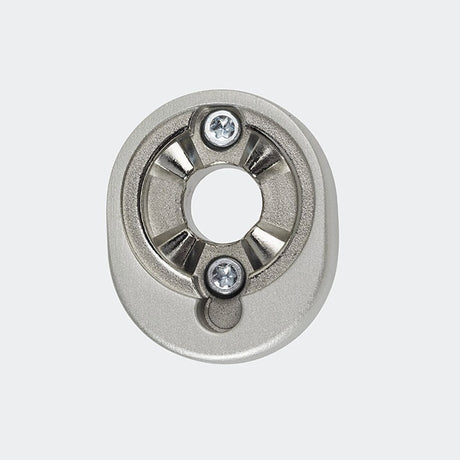

Schuco escutcheon - lockable handle - SmartActive - 269131
Regular price €18,59Unit priceVery low stock (1 unit)
Regular priceFrom €11,15Unit priceIn stock (47 units)

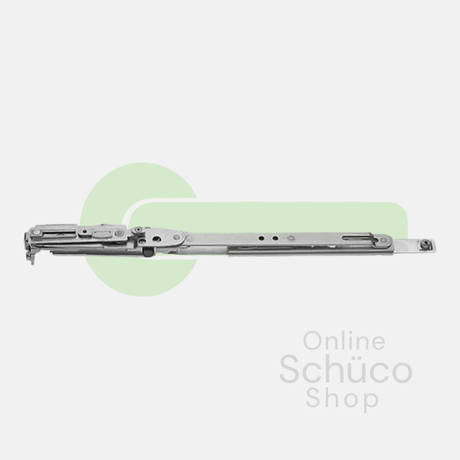

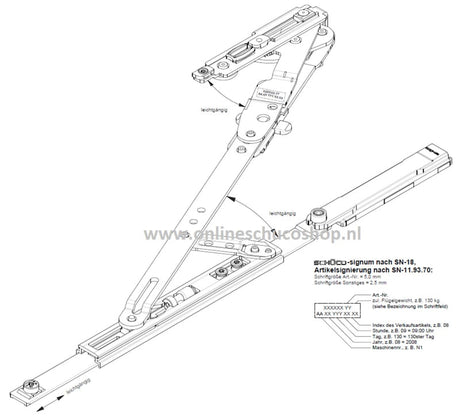

Schuco AvanTec Tilt and Turn Stay 400 mm 130 kg - 275013 (LH) - 275014 (RH)
Regular price €147,93Unit priceIn stock (21 units)

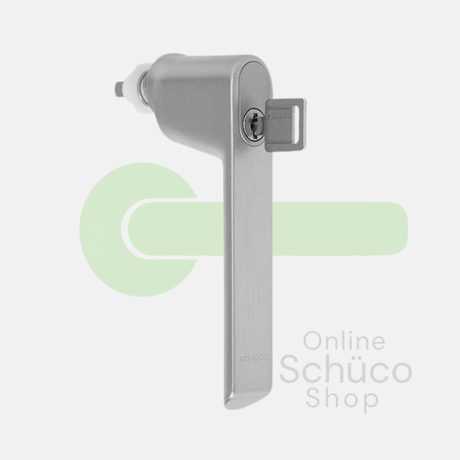

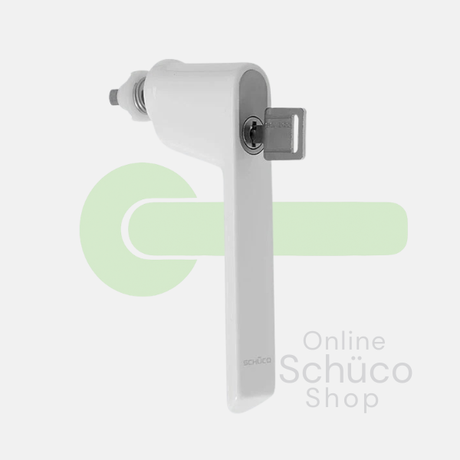

Schuco window handle - lockable - stainless steel look - 247038
Regular price €66,10Unit priceIn stock (14 units)

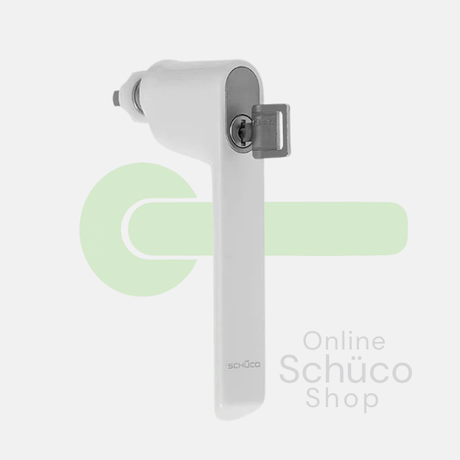

7% offSchuco window handle - lockable - white RAL 9016 - 247036
Sale price €53,63 Regular price €57,40Unit priceIn stock (14 units)
